10mm Shank Dowel Drill/Boring Bit Adapter/Tool Holder

10mm Shank Dowel Drill/Boring Bit Adapter/Tool Holder

#
  • $ 32.36

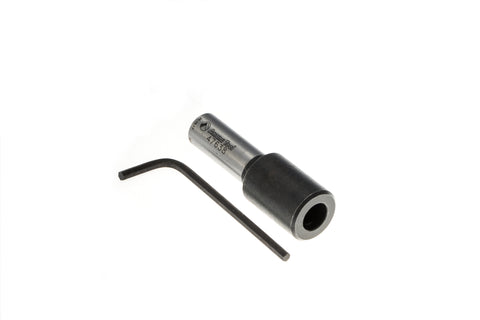

10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.

Total Indicated Run-out (TIR) is 0.00118" (0.03mm)

Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws. Warning: Max RPM = 10,000

Amana 47638.

Diameter 3/4
Shank 1/2
Overall Length 2-7/16
D1 10mm
L1 1-1/16
